Pair Vented Rotor Front For AUDI A3/VOLKSWAGEN GOLF/JETTA
SKU code: 2xACDR1193
| Fitment Location | Pair |
| Pack Info | 2 |
| Note/Cross Reference Number | ACDR1193;#CD1193 |
AUDI A3 8P (2 Door Hatchback) 2003 - 2005 2.0L DOHC
AUDI A3 8P (4 Door Hatchback) 2005 - 2006 2.0L DOHC WT
AUDI A3 1.6 ATTRACTION 8P (2 Door Convertible) 2009 - 2010 1.6L SOHC
AUDI A3 1.6 ATTRACTION 8P (2 Door Hatchback) 2004 – 2011 1.6L SOHC
AUDI A3 1.8 TFSI 8P (2 Door Convertible) 2008 - 2013 1.8L DOHC WT
AUDI A3 1.8 TFSI AMBITION 8P (2 Door Hatchback) 2007 - 2010 1.8L DOHC WT
AUDI A3 2.0 FSI AMBITION 8P (2 Door Hatchback) 2004 - 2007 2.0L DOHC WT
AUDI A3 2.0 FSI ATTRACTION 8P (2 Door Hatchback) 2004 - 2005 2.0L DOHC WT
AUDI A3 2.0 TDI AMBITION 8P (2 Door Hatchback) 2004 - 2005 2.0L DOHC
AUDI A3 2.0 TFSI AMBITION 8P (2 Door Convertible) 2008 - 2013 2.0L DOHC WT
AUDI A3 SPORTBACK 1.6 ATTRACTION 8P (4 Door Hatchback) 2005 - 2011 1.6L SOHC
AUDI A3 SPORTBACK 1.8 TFSI AMBITION 8P (4 Door Hatchback) 2007 - 2013 1.8L DOHC WT
AUDI A3 SPORTBACK 1.9 TDi e 8P (4 Door Hatchback) 2008 - 2010 1.9L SOHC
AUDI A3 SPORTBACK 2.0 FSI AMBITION 8P (4 Door Hatchback) 2005 – 2007 2.0L DOHC WT
AUDI A3 SPORTBACK 2.0 TDI 8P (4 Door Hatchback) 2006 - 2011 2.0L DOHC
AUDI A3 SPORTBACK 2.0 TDI AMBITION 8P (4 Door Hatchback) 2005 - 2013 2.0L DOHC
AUDI A3 SPORTBACK 2.0 TFSI AMBITION 8P (4 Door Hatchback) 2005 - 2009 2.0L DOHC WT
AUDI A3 SPORTBACK 2.0 TFSI QUATTRO 8P (4 Door Hatchback) 2005 - 2006 2.0L DOHC WT
AUDI A3 SPORTBACK QUATTRO 8P (4 Door Hatchback) 2006 - 2013 2.0L DOHC WT
AUDI A3 SPORTSBACK 1.4 TFSI ATTRACTION 8P (4 Door Hatchback) 2008 - 2013 1.4 DOHC
VOLKSWAGEN GOLF MK4 (4 Door Hatchback) 1997 - 2004 1.9L SOHC
VOLKSWAGEN GOLF MK5 (2 Door Hatchback) 2004 - 2005 1.6L SOHC
VOLKSWAGEN GOLF MK5 (4 Door Hatchback) 2004 - 2009 1.6L SOHC
VOLKSWAGEN GOLF 1.9 TDI MK 5 (4 Door Hatchback) 2003 - 2009 1.9L SOHC
VOLKSWAGEN GOLF GT MK5 (4 Door Hatchback) 2007 - 2009 1.4L DOHC
VOLKSWAGEN GOLF TSI MK5 (4 Door Hatchback) 2006 - 2008 1.4L DOHC
VOLKSWAGEN JETTA MK 5 (4 Door Sedan) 2007 - 2009 1.4L DOHC

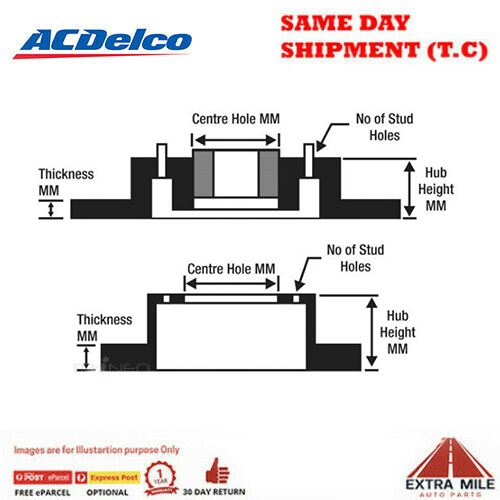

| #GM Part Number | 19347124 |
| Rotor Diameter | 279.9mm |
| Hub Height | 49.4mm |
| Centre Hole Dia. | 65mm |
| Original Thickness (Max) | 22mm |
| Original Thickness (Min) | 19mm |
| Studs/Bolt Holes | 5 |
| Rotor Type | |
| Weight | 6.0000Kg |
All ACDelco Disc Rotors are balanced during the machining process to ensure optimum performance on initial fitment, and are engineered to minimise brake shudder, improve thermal efficiency and reduce brake noise.
- Manufactured with multiple alloys for optimum heat dissipation and performance
- Mill-balanced for proper rotor function; no extra weights needed
- Quality validated for proper metallurgy and correct brake plate thickness
- Rounded radius for added strength
High Carbon, Grey Iron Composition
- Low noise propensity.
- High thermal conductivity for fade and cracking resistance.
- Excellent high and low temperature mechanical strength.
- Wear resistance.
Optimised Rotor Design
- Reduced rotor coning under high temperature.
- Improves thermal efficiency.
Advanced Ventilation
- Optimal cooling behaviour without increased mass.
- Resistance to thermal judder.
- Low transient and permanent deformation.
Precise Machining Tolerances
- Minimises brake shudder.
- Extremely low DTV (Disc Thickness Variation).
- Very low levels of LRO (Lateral Runout).
Minimum Thickness Dimension's
- Minimum thickness dimension marked on outer edge.
Why you should buy Disc Rotor Auto Parts from us?
- Authorized Dealer Genuine Warranty
- 15 Years Industry Experience
- Pre-sales Customer Service Support
- 100% Fitment Guarantee
- Local Warehouse Fast Delivery
- Free 30 Days Returns
AUDI A3 8P (2 Door Hatchback) 2003 - 2005 2.0L DOHC
AUDI A3 8P (4 Door Hatchback) 2005 - 2006 2.0L DOHC WT
AUDI A3 1.6 ATTRACTION 8P (2 Door Convertible) 2009 - 2010 1.6L SOHC
AUDI A3 1.6 ATTRACTION 8P (2 Door Hatchback) 2004 – 2011 1.6L SOHC
AUDI A3 1.8 TFSI 8P (2 Door Convertible) 2008 - 2013 1.8L DOHC WT
AUDI A3 1.8 TFSI AMBITION 8P (2 Door Hatchback) 2007 - 2010 1.8L DOHC WT
AUDI A3 2.0 FSI AMBITION 8P (2 Door Hatchback) 2004 - 2007 2.0L DOHC WT
AUDI A3 2.0 FSI ATTRACTION 8P (2 Door Hatchback) 2004 - 2005 2.0L DOHC WT
AUDI A3 2.0 TDI AMBITION 8P (2 Door Hatchback) 2004 - 2005 2.0L DOHC
AUDI A3 2.0 TFSI AMBITION 8P (2 Door Convertible) 2008 - 2013 2.0L DOHC WT
AUDI A3 SPORTBACK 1.6 ATTRACTION 8P (4 Door Hatchback) 2005 - 2011 1.6L SOHC
AUDI A3 SPORTBACK 1.8 TFSI AMBITION 8P (4 Door Hatchback) 2007 - 2013 1.8L DOHC WT
AUDI A3 SPORTBACK 1.9 TDi e 8P (4 Door Hatchback) 2008 - 2010 1.9L SOHC
AUDI A3 SPORTBACK 2.0 FSI AMBITION 8P (4 Door Hatchback) 2005 – 2007 2.0L DOHC WT
AUDI A3 SPORTBACK 2.0 TDI 8P (4 Door Hatchback) 2006 - 2011 2.0L DOHC
AUDI A3 SPORTBACK 2.0 TDI AMBITION 8P (4 Door Hatchback) 2005 - 2013 2.0L DOHC
AUDI A3 SPORTBACK 2.0 TFSI AMBITION 8P (4 Door Hatchback) 2005 - 2009 2.0L DOHC WT
AUDI A3 SPORTBACK 2.0 TFSI QUATTRO 8P (4 Door Hatchback) 2005 - 2006 2.0L DOHC WT
AUDI A3 SPORTBACK QUATTRO 8P (4 Door Hatchback) 2006 - 2013 2.0L DOHC WT
AUDI A3 SPORTSBACK 1.4 TFSI ATTRACTION 8P (4 Door Hatchback) 2008 - 2013 1.4 DOHC
VOLKSWAGEN GOLF MK4 (4 Door Hatchback) 1997 - 2004 1.9L SOHC
VOLKSWAGEN GOLF MK5 (2 Door Hatchback) 2004 - 2005 1.6L SOHC
VOLKSWAGEN GOLF MK5 (4 Door Hatchback) 2004 - 2009 1.6L SOHC
VOLKSWAGEN GOLF 1.9 TDI MK 5 (4 Door Hatchback) 2003 - 2009 1.9L SOHC
VOLKSWAGEN GOLF GT MK5 (4 Door Hatchback) 2007 - 2009 1.4L DOHC
VOLKSWAGEN GOLF TSI MK5 (4 Door Hatchback) 2006 - 2008 1.4L DOHC
VOLKSWAGEN JETTA MK 5 (4 Door Sedan) 2007 - 2009 1.4L DOHC
| SKU | 2xACDR1193 |
| Brand | ACDELCO |
| Shipping Weight | 6.0000kg |
