Product Description
Fitment Location Pair
Pack Info 2
Note/Cross Reference Number

ACDR2201; #RDA7646;#PBR2201; #DBA2201

Vehicle Fitment

MITSUBISHI LANCER CH VR-X 2.0litre, CH 2.4 LTR, 15 7/2003 - 9/2007

Technical Specifications
Protex_Blue
#GM Part Number 19334761
Rotor Diameter 276mm
Hub Height 45.5mm
Centre Hole Dia. 69mm
Original Thickness (Max) 26mm
Original Thickness (Min) 24.4mm
Studs/Bolt Holes 5
Rotor Type
Weight 6.0000Kg

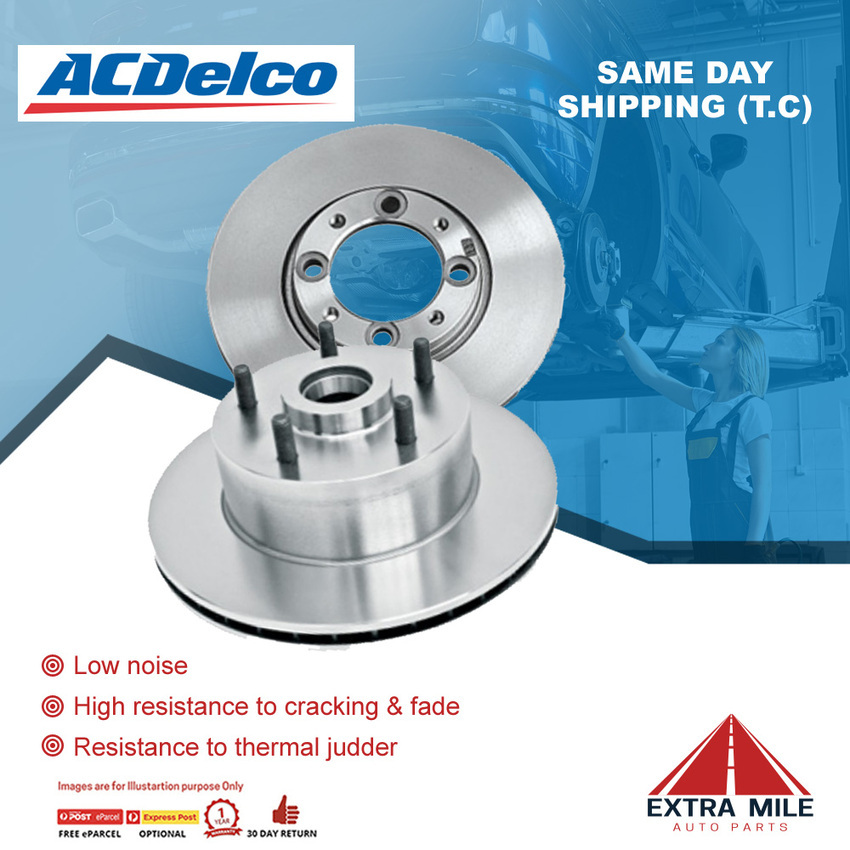

ACDelco Disc Rotor
Protex_Blue

All ACDelco Disc Rotors are balanced during the machining process to ensure optimum performance on initial fitment, and are engineered to minimise brake shudder, improve thermal efficiency and reduce brake noise.

  • Manufactured with multiple alloys for optimum heat dissipation and performance
  • Mill-balanced for proper rotor function; no extra weights needed
  • Quality validated for proper metallurgy and correct brake plate thickness
  • Rounded radius for added strength
Features & Benefits

High Carbon, Grey Iron Composition

  • Low noise propensity.
  • High thermal conductivity for fade and cracking resistance.
  • Excellent high and low temperature mechanical strength.
  • Wear resistance.

Optimised Rotor Design

  • Reduced rotor coning under high temperature.
  • Improves thermal efficiency.

Advanced Ventilation

  • Optimal cooling behaviour without increased mass.
  • Resistance to thermal judder.
  • Low transient and permanent deformation.

Precise Machining Tolerances

  • Minimises brake shudder.
  • Extremely low DTV (Disc Thickness Variation).
  • Very low levels of LRO (Lateral Runout).

Minimum Thickness Dimension's

  • Minimum thickness dimension marked on outer edge.
cutting_edge_tec
cutting_edge_tec

Why you should buy Disc Rotor Auto Parts from us?

  • Authorized Dealer Genuine Warranty
  • 15 Years Industry Experience
  • Pre-sales Customer Service Support
  • 100% Fitment Guarantee
  • Local Warehouse Fast Delivery
  • Free 30 Days Returns

MITSUBISHI LANCER CH VR-X 2.0litre, CH 2.4 LTR, 15 7/2003 - 9/2007

SKU 2xACDR2201-3
Brand ACDELCO
Shipping Weight 6.0000kg
