2X DBA Rear Disc Brake Rotor Vented For Ford Falcon GL S-PAK XF 4.1L 250 CARB
SKU code: DBA109_3

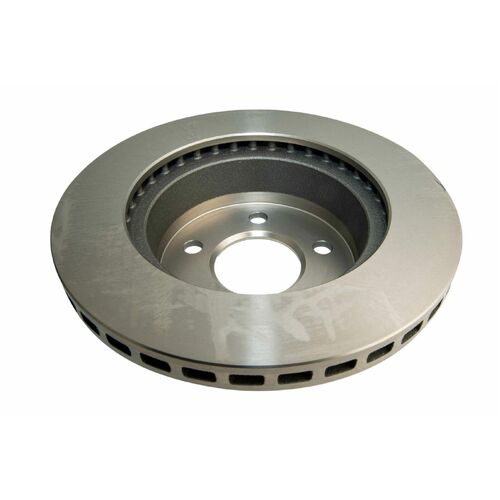

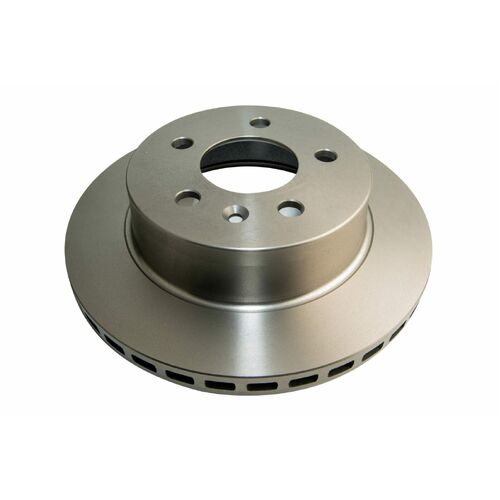

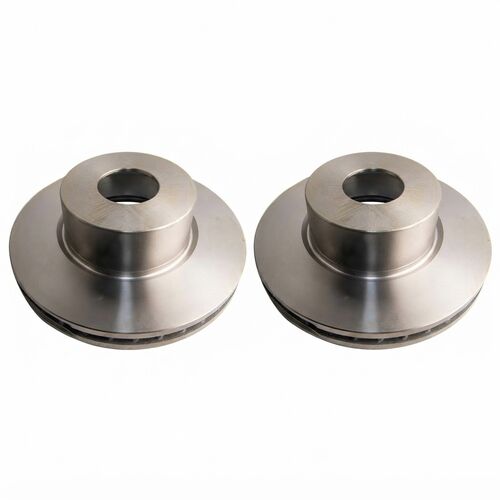

DBA Disc Brake Rotor Rear Vented 286mm- Pair
Part No.DBA109
Type DISC BRAKE ROTOR
Brand DBA BRAKES
Unit of Measure EACH
Description DBA Brakes Standard Disc Brake Rotor Vented 286mm
Warranty 12 Months 20000km
Centre Hole Diameter 70.5mm
Flange Diameter 70.5mm
Minimum Thickness 22.2mm
Type Vented
Height 71.5mm
Diameter 286mm
Item Type Disc Brake Rotor
Material Type CAST IRON
Thickness 24mm
Pack Qty 1
Number of Stud Holes 5
Position Rear
Centre Hole 70.5
Brake Disc Type Vented
Brake Disc Thickness 24
Centering Diameter 70.5
Surface Coated
Wheel Bolt Bore O 15.8
Packaging length 30.5
Packaging width 32.5
Packaging height 8
Weight 7.22kg
| Fitment Location | Rear |
| Pack Info | Pair |
FORD FALCON GL, S-PAK XF XF 10/1984 02/1988 4 Door Sedan 4.1 litre, PETROL 250 l6 12V OHV EFI (121kW)
FORD FALCON GL, S-PAK XF XF 10/1934 02/1988 4 Door Wagon 4.1 litre, PETROL 250 l6 12V OHV CARB (103kW)
FORD FALCON GL, S-PAK XF XF 10/1984 02/1988 4 Door Sedan 4.1 litre, PETROL 250 l6 12V OHV CARB (103kW)
FORD FALCON GL, S-PAK XF XF 10/1984 02/1988 4 Door Wagon 4.1 litre. PETROL 250 l6 12V OHV EFI (121kW)

| #GM Part Number | |
| Rotor Diameter | 286mm |
| Hub Height | 71.5mm |
| Centre Hole Dia. | 70.5mm |
| Original Thickness (Max) | 24mm |
| Original Thickness (Min) | 22.2mm |
| Studs/Bolt Holes | 5 |
| Rotor Type | Vented |
| Weight | 0.0000Kg |
Changing brake discs at regular intervals is of extreme importance to be sure one’s car braking system delivers high end performance under challenging weather.
We have many brake disc rotor manufacturers across the globe. Extramile offer you the best brands and rotor models. Brands include Bosch, Delphi, AC Delco, RAE, RDA, Protex and few more to add.
If you are thinking of changing the disc rotor, we must determine which type of rotors the vehicle uses. There are four types Rotors
- Blank & Smooth - Blank and smooth rotors are what you'll find on most passenger vehicles and feature a smooth, blank metal surface all the way around the rotor
- Drilled - Drilled rotors feature drilled holes around the metal surface
- Slotted - Slotted rotors feature long "slots" or lines in the metal surface
- Drilled & Slotted - Drilled and slotted rotors combine the drilled holes and slots for enhanced performance
Blank & Smooth

As stated above, blank and smooth rotors are what you'll commonly find on most new passenger vehicles. Keep in mind that oe-specific rotors have a basic and premium option, and it all has to do with how they're manufactured. Unless you're a super aggressive driver or you're driving a luxury vehicle, blank rotors are a great choice for your vehicle.
Basic oe-specific rotors are traditionally made from recycled steel and a lot of times don't perform as well as your original equipment manufacturer (OEM) rotors due to thicker internal fins, which in turn impact the cooling abilities of your rotors. If you're going to use premium ceramic brake pads with your new rotors, don't pair them with a basic set of rotors. Basic rotors will also end up reducing the life of your new pads, as they'll wear down quicker due to the increased heat.
Drilled Rotors

As the name suggests, drilled rotors have holes drilled throughout the surface. These holes allow water, dust, and heat to easily dissipate off the surface of the rotor. Drilled rotors are a great choice for drivers that live in wetter climates as they'll help increase stopping power in wet, rainy conditions. If you're looking at drilled rotors for a performance vehicle, you'll want to stay away. Drilled rotors don't work well under high-heat and can fail pretty quickly in a race-type driving scenario.
Slotted Rotors

As mentioned before, slotted rotors feature slots around the exterior surface of the rotor. They're a great choice for heavy-duty trucks and SUVs, especially those that need improved stopping power when towing or hauling. The slots are designed to draw more air in between the pad and rotor surface, which improves cooling and heat dispersion. They're also designed to help remove excess brake debris and pad glaze that can occur at higher temperatures. While they are more efficient in a few ways, they come with the downside of not lasting as long, which also affects the life of your pads.
Drilled & Slotted Rotors

Lastly, drilled and slotted rotors are primarily designed for performance vehicles, like sports cars, that need enhanced cooling and heat dispersion. This type of rotor was designed to improve braking at high speeds during racing or track days.
