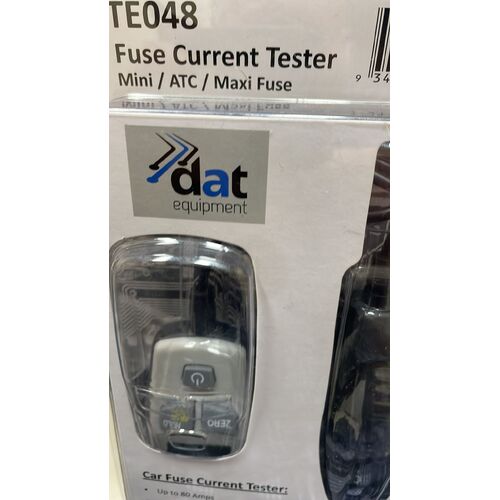

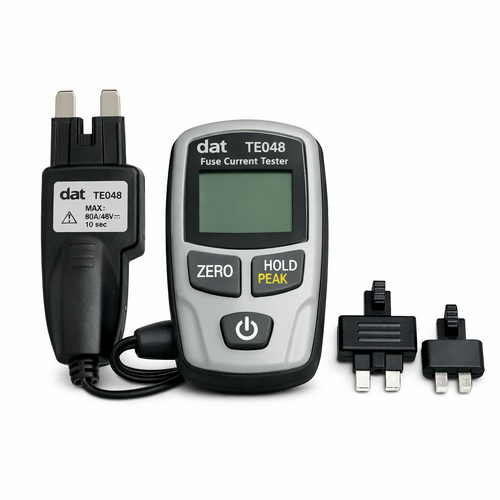

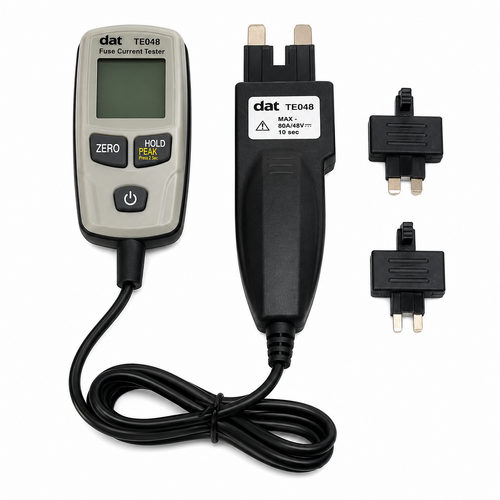

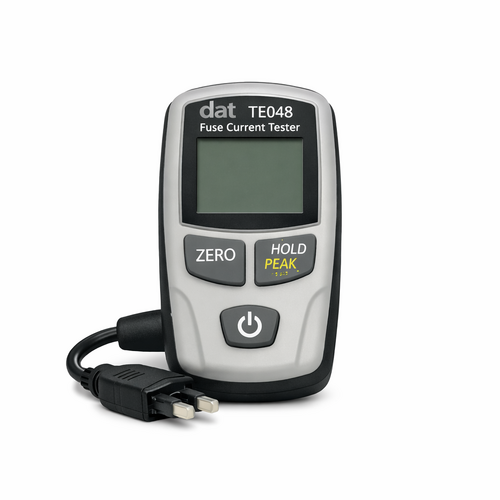

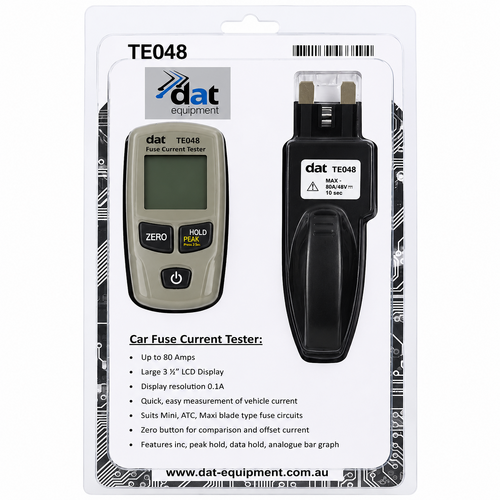

DAT Equipment Fuse Current Tester Min/ATC/Maxi Fuse Up to 80 AMPS -TE048

Specifications

Fuse Type: BCA-Maxi-Blade
LCD Display Resolution: 0.1A
Measuring Range: 60A
Accuracy: ± (2.0% reading + 4 digits)
Current: OA to 60Amax
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Relative Humidity: -70% operating, <80% storage
Operating Altitude: 7000ft (2000 meters) maximum

  • Up to 80 Amps
  • Large 3½" LCD Display
  • Display resolution 0.1A
  • Quick, easy measurement of vehicle current
  • Suits Mini, ATC, Maxi blade type fuse circuits
  • Zero button for comparison and offset current
  • Features inc, peak hold, data hold, analogue bar graph

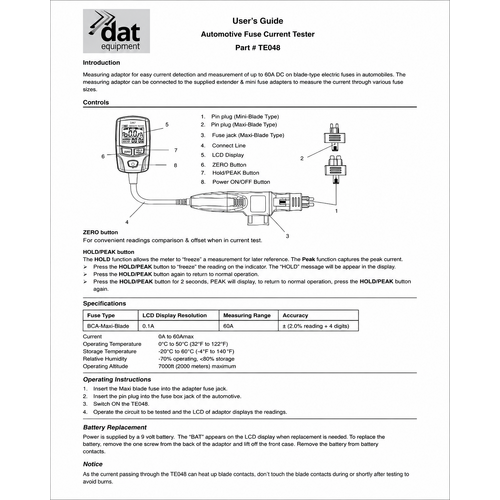

Operating Instructions
1. Insert the Maxi blade fuse into the adapter fuse jack.
2. Insert the pin plug into the fuse box jack of the automotive.
3. Switch ON the TE048.
4. Operate the circuit to be tested and the LCD of adaptor displays the readings.

Battery Replacement
Power is supplied by a 9 volt battery. The "BAT" appears on the LCD display when replacement is needed. To replace the battery, remove the one screw from the back of the adaptor and lift off the front case. Remove the battery from battery contacts.

Notice
As the current passing through the TE048 can heat up blade contacts, don't touch the blade contacts during or shortly after testing to avoid burns.



Product Description
Brand DAT
Pack Info 1
Manufacturer Part Number TE048
