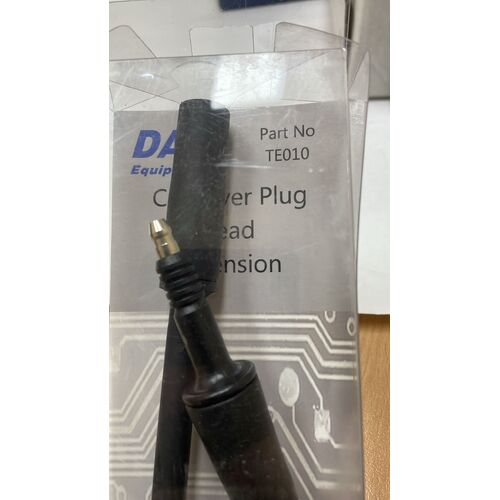

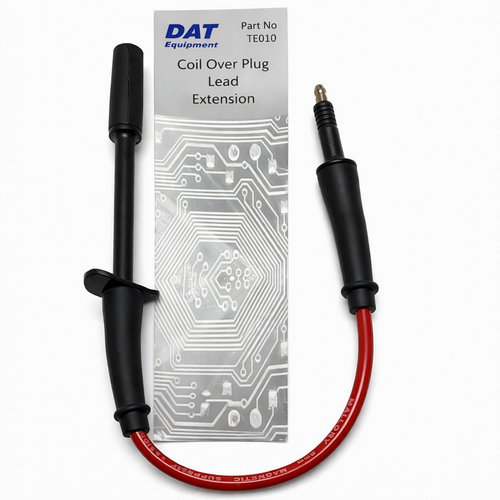

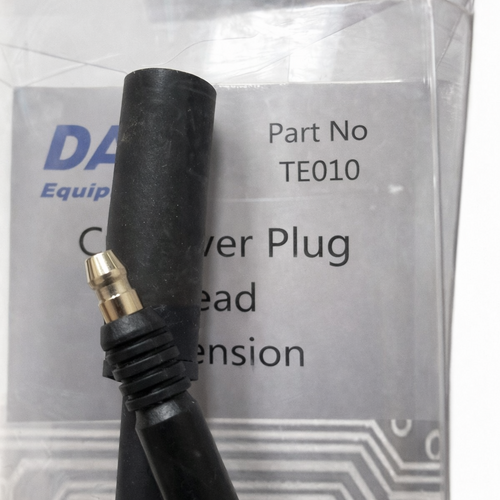

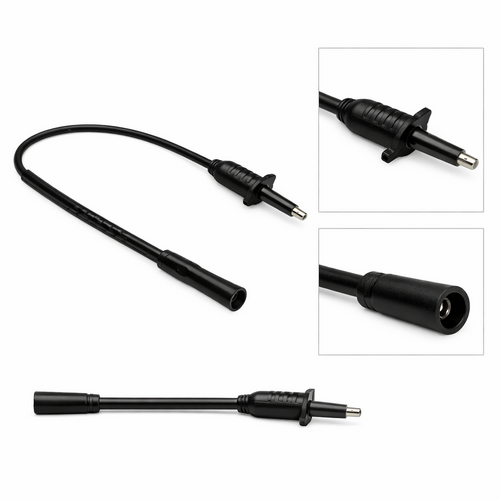

TE010 High Tension Spark Plug Extension – Technical Information

Overview
The TE010 High Tension (HT) Spark Plug Extension is designed to provide a reliable insulated link between the ignition coil and the spark plug. It is commonly used in diagnostic, service, and tuning environments where additional clearance, reach, or accessibility is required.

This extension allows technicians to safely access the secondary ignition circuit without disturbing the coil or plug seating, ensuring accurate measurement and stable engine operation during testing.

Function & Application
Extends the spark plug connection to allow secondary ignition analysis

Provides high‑voltage insulation suitable for modern ignition systems

Useful when spark plugs are deeply recessed or obstructed

Ideal for engines where direct access to the plug is limited

Compatible with most HT leads, ignition testers, and scopes

Helps maintain proper coil‑to‑plug alignment during diagnostics

Typical Use Cases
Automotive workshops performing ignition diagnostics

Small engines, motorcycles, marine engines, and older vehicles

Situations requiring temporary extension of the spark plug terminal

Use with secondary ignition pickups for waveform analysis

Coil‑on‑plug (COP) systems where adapters are required

Technical Features
High‑temperature silicone insulation

Reinforced internal conductor for stable spark transfer

Standard spark plug terminal ends for universal compatibility

Designed to withstand high voltage output from modern ignition coils

Durable construction for repeated workshop use

Benefits
Enables accurate secondary ignition waveform capture

Prevents damage to ignition coils during testing

Provides safe working distance from hot engine components

Reduces the need to remove or reposition coils during diagnostics
