DBA Disc Brake Rotor For Toyota Hilux LN106R RN105R LN106 2.2L,2.8L 22R CARB
SKU code: DBA151_2

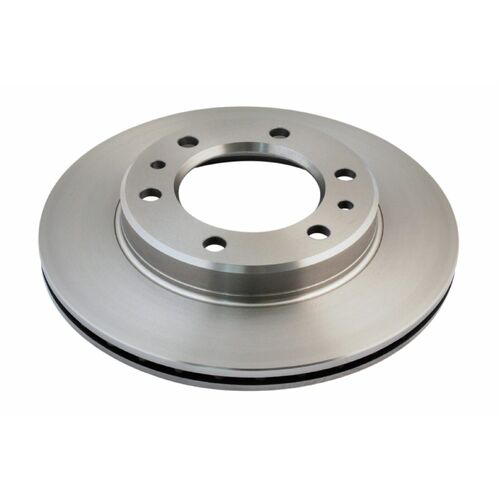

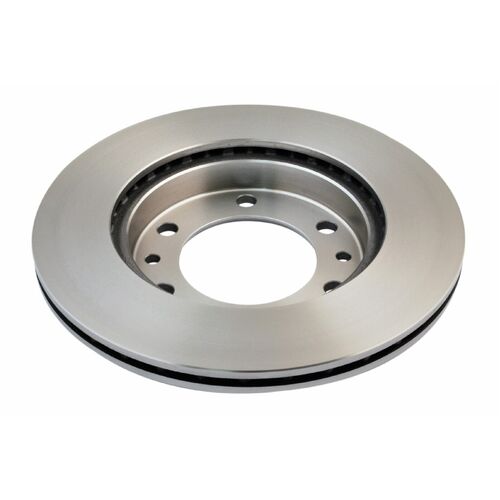

DBA Brakes Standard Disc Brake Rotor Vented 302mm
Part No.DBA151
SKU A9617019
Type DISC BRAKE ROTOR
Brand DBA BRAKES
Unit of Measure EACH
Description DBA Brakes Standard Disc Brake Rotor Vented 302mm
Warranty 12 Months 20000km
Centre Hole Diameter 100mm
Minimum Thickness 19mm
Type Vented
Height 49mm
Diameter 302mm
Item Type Disc Brake Rotor
Material Type CAST IRON
Thickness 20mm
Pack Qty 1
Number of Stud Holes 6
Position Front
Centre Hole 100
Brake Disc Type Vented
Brake Disc Thickness 20
Centering Diameter 100
Surface Coated
Wheel Bolt Bore O 14.8
Packaging length 32.5
Packaging width 34.5
Packaging height 5.5
Weight 6.63kg
| Pack Info | 1 |
TOYOTA HILUX LN106R LN106 10/1988 11/1997 2 Door Ute-SC-Utility 2.8 litre, DIESEL 3L l4 8v SOHC Diesel Inj (60KW
TOYOTA HILUX LN108R LN106 10/1988 11/1997 4 Door Ute-DC- Utility 2.8 litre, DIESEL 3L l4 8v SOHC Diesel Inj (60kW)
TOYOTA HILUX LN106R LN106 09/1988 08/1997 2 Door Ute-SC- Utility 2.8 litre, DIESEL 3L l4 By SOHC Diesel Inj (68kW)
TOYOTA HILUX LN106R LN106 1993 1998 2 Door Ute-SC-Utility 2.8 litre, DIESEL 3L l4 8v SOHC Diesel Inj (65kW)
TOYOTA HILUX LN106R LN106 1993 1999 4 Door Ute-DC- Utility 2.8 litre, DIESEL 3L l4 8v SOHC Diesel Inj (65kW)
TOYOTA HILUX RN105R RN104 10/1988 11/1997 2 Door Ute-SC-Cab Chass 2.4 litre, PETROL 22R l4 8v SOHC CARB (75KW
TOYOTA HILUX RN105R RN104 10/1988 11/1997 4 Door Ute-DC-Utility 2.4 litre, PETROL 22R l4 8v SOHC CARB (75kW
TOYOTA HILUX RN105R RN105 10/1988 08/1997 2 Door Ute-SC-Utility 2.4 litre, PETROL 22R l4 8v SOHC CARB (75kW
TOYOTA HILUX RN105R RN105 10/1988 08/1997 4 Door Ute-DC-Utility 2.4 litre, PETROL 22R l4 8v SOHC CARB 175kW)
TOYOTA HILUX YN106R YN106 1988 1992 2 Door Ute-SC-Utility 2.2 litre. PETROL 4Y l4 By OHV CARB

| #GM Part Number | |
| Rotor Diameter | 302mm |
| Hub Height | 49mm |
| Centre Hole Dia. | 100mm |
| Original Thickness (Max) | 20mm |
| Original Thickness (Min) | 19mm |
| Studs/Bolt Holes | 6 |
| Rotor Type | |
| Weight | 0.0000Kg |
Changing brake discs at regular intervals is of extreme importance to be sure one’s car braking system delivers high end performance under challenging weather.
We have many brake disc rotor manufacturers across the globe. Extramile offer you the best brands and rotor models. Brands include Bosch, Delphi, AC Delco, RAE, RDA, Protex and few more to add.
If you are thinking of changing the disc rotor, we must determine which type of rotors the vehicle uses. There are four types Rotors
- Blank & Smooth - Blank and smooth rotors are what you'll find on most passenger vehicles and feature a smooth, blank metal surface all the way around the rotor
- Drilled - Drilled rotors feature drilled holes around the metal surface
- Slotted - Slotted rotors feature long "slots" or lines in the metal surface
- Drilled & Slotted - Drilled and slotted rotors combine the drilled holes and slots for enhanced performance
Blank & Smooth

As stated above, blank and smooth rotors are what you'll commonly find on most new passenger vehicles. Keep in mind that oe-specific rotors have a basic and premium option, and it all has to do with how they're manufactured. Unless you're a super aggressive driver or you're driving a luxury vehicle, blank rotors are a great choice for your vehicle.
Basic oe-specific rotors are traditionally made from recycled steel and a lot of times don't perform as well as your original equipment manufacturer (OEM) rotors due to thicker internal fins, which in turn impact the cooling abilities of your rotors. If you're going to use premium ceramic brake pads with your new rotors, don't pair them with a basic set of rotors. Basic rotors will also end up reducing the life of your new pads, as they'll wear down quicker due to the increased heat.
Drilled Rotors

As the name suggests, drilled rotors have holes drilled throughout the surface. These holes allow water, dust, and heat to easily dissipate off the surface of the rotor. Drilled rotors are a great choice for drivers that live in wetter climates as they'll help increase stopping power in wet, rainy conditions. If you're looking at drilled rotors for a performance vehicle, you'll want to stay away. Drilled rotors don't work well under high-heat and can fail pretty quickly in a race-type driving scenario.
Slotted Rotors

As mentioned before, slotted rotors feature slots around the exterior surface of the rotor. They're a great choice for heavy-duty trucks and SUVs, especially those that need improved stopping power when towing or hauling. The slots are designed to draw more air in between the pad and rotor surface, which improves cooling and heat dispersion. They're also designed to help remove excess brake debris and pad glaze that can occur at higher temperatures. While they are more efficient in a few ways, they come with the downside of not lasting as long, which also affects the life of your pads.
Drilled & Slotted Rotors

Lastly, drilled and slotted rotors are primarily designed for performance vehicles, like sports cars, that need enhanced cooling and heat dispersion. This type of rotor was designed to improve braking at high speeds during racing or track days.
Why you should buy Disc Rotor Auto Parts from us?
- Authorized Dealer Genuine Warranty
- 15 Years Industry Experience
- Pre-sales Customer Service Support
- 100% Fitment Guarantee
- Local Warehouse Fast Delivery
- Free 30 Days Returns
TOYOTA HILUX LN108R LN106 10/1988 11/1997 4 Door Ute-DC- Utility 2.8 litre, DIESEL 3L l4 8v SOHC Diesel Inj (60kW)
TOYOTA HILUX LN106R LN106 09/1988 08/1997 2 Door Ute-SC- Utility 2.8 litre, DIESEL 3L l4 By SOHC Diesel Inj (68kW)
TOYOTA HILUX LN106R LN106 1993 1998 2 Door Ute-SC-Utility 2.8 litre, DIESEL 3L l4 8v SOHC Diesel Inj (65kW)
TOYOTA HILUX LN106R LN106 1993 1999 4 Door Ute-DC- Utility 2.8 litre, DIESEL 3L l4 8v SOHC Diesel Inj (65kW)
TOYOTA HILUX RN105R RN104 10/1988 11/1997 2 Door Ute-SC-Cab Chass 2.4 litre, PETROL 22R l4 8v SOHC CARB (75KW
TOYOTA HILUX RN105R RN104 10/1988 11/1997 4 Door Ute-DC-Utility 2.4 litre, PETROL 22R l4 8v SOHC CARB (75kW
TOYOTA HILUX RN105R RN105 10/1988 08/1997 2 Door Ute-SC-Utility 2.4 litre, PETROL 22R l4 8v SOHC CARB (75kW
TOYOTA HILUX RN105R RN105 10/1988 08/1997 4 Door Ute-DC-Utility 2.4 litre, PETROL 22R l4 8v SOHC CARB 175kW)
TOYOTA HILUX YN106R YN106 1988 1992 2 Door Ute-SC-Utility 2.2 litre. PETROL 4Y l4 By OHV CARB
| SKU | DBA151_2 |
| Brand | DBA |
