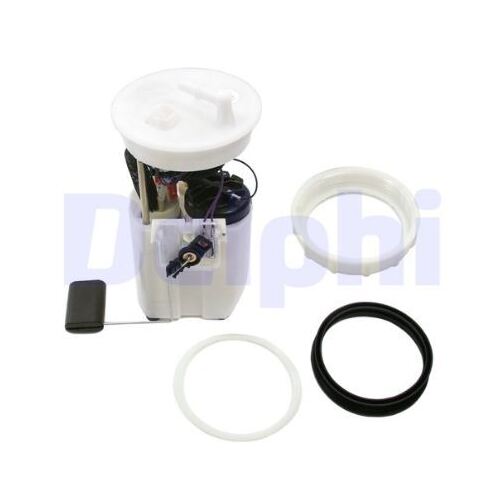

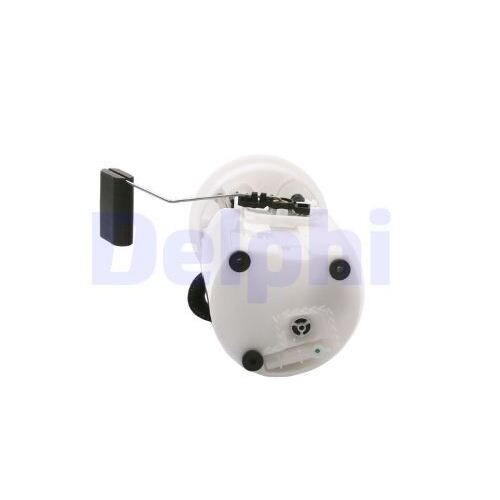

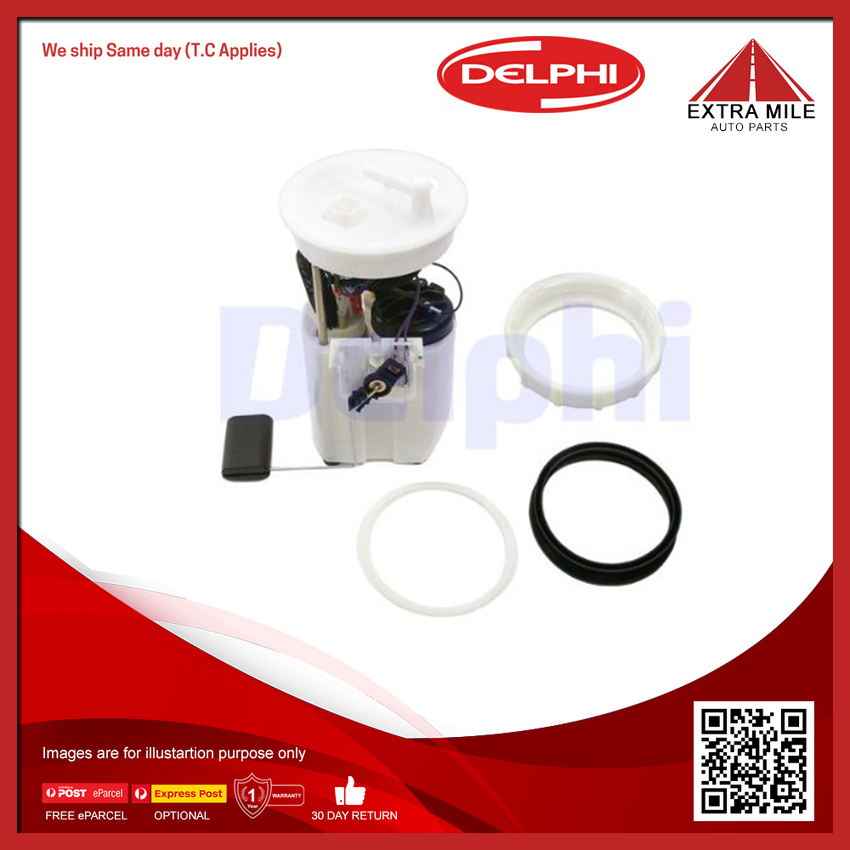

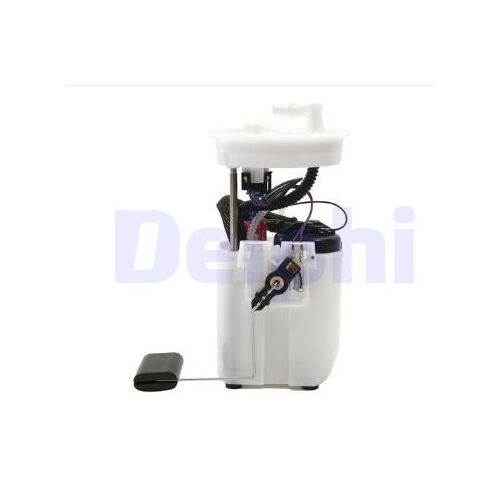

Delphi Fuel Pump Module Assembly

Specifications

Average Current Draw : 11 A
Average Flow Rating : 21 gph
Connector Gender : Female
Connector Quantity : 1
Connector Shape : Square
Fuel Filter Included : Yes
Fuel Sending Unit Included : Yes
Fuel Tank Pressure Sensor Included : No
Fuel Type : Gas
Gasket Or Seal Included : Yes
Gasket Or Seal Material : Nitrile Rubber
Grade Type : Premium
Housing Material : Plastic
In Tank or External : In Tank
Inlet Type : Strainer
Installation Warnings : No
Internal Or External Strainer : Internal
Lock Ring Included : Yes
Maximum Pressure : 65 PSI
Minimum Pressure : 51 PSI
Mounting Hardware Included : No
Negative Ground : No
Outlet Outside Diameter : 0.375 in
Outlet Quantity : 1
Outlet Type : Quick Connect
Pump Design : Turbine
Pump Type : Electric
Regulator Included : Yes
Resistance Ohms Empty : 780 Ohms
Resistance Ohms Full : 20 Ohms
Strainer Included : Yes
Terminal Gender : Male
Terminal Quantity : 4
Terminal Type : Blade
Voltage : 12 VDC
Wire Harness Included : No
